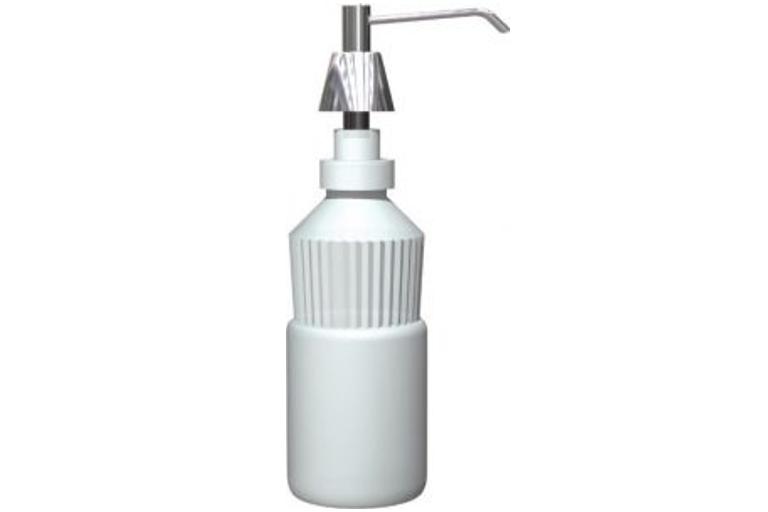

ASI 0332 – Lavatory Mounted Soap Dispenser – 34 oz.

ASI 0332  MANUAL PUMP Soap Dispenser – Lavatory Mounted



• Soap is manually dispensed by pushing down on the spout stem.
• Dispenser is refilled by using the special refill key to unlock the escutcheon and remove the valve body with dip tube from the shank to expose reservoir opening.



Specifications

Lavatory Mounted Soap Dispenser shall dispense 34 oz. (1.0 liter) of liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Dispenser stem and 4″ spout shall be stainless steel with rubber “duck bill” check valves and an O-ring seal. Valve body, internal parts, basin nut, threaded shank and globe adapter shall be molded plastic. Spring, escutcheon washer, stem retainer collar and screw shall be stainless steel. Escutcheon shall be chrome plated brass. Soap container shall be translucent, shatter resistant
polyethylene. Vandal-resistant spout shall rotate 360° without damage to unit. Valve operation shall comply with ADA Accessibility Guidelines by requiring no more than 5 lb sf (22.2 Newtons) of pressure to actuate without grasping or twisting by operator.



Cover Material	Spout above Lavatory is Stainless Steel
Activation	Manually Dispensed by pushing down
Canister Type	Bulk Fill
Dispense Type	Liquid
Capacity	34 oz.
Unit Dimensions	Spout is 4″ Above Counter
Unit Weight	4.0 lbs.
Ship Dimensions	4″ Wide x 11″ Tall
