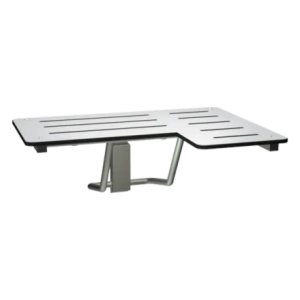

ASI 8206-R – Folding Shower Seat – Solid Phenolic

ASI 8206-R – Folding Shower Seat – Solid Phenolic

• Phenolic Top Color is IVORY
• This is Right Hand Shower Seat.

Features:

• L-Shaped Phenolic Fold-up Shower Seat
• Shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel.
• Seat frame and support legs 1″ dia and 1-1/4″ square x 18 gauge  with 3/16″  thick mounting flanges.
• All exposed surfaces shall have satin finish.
• Structural assembly shall be of welded construction, exposed edges and corners shall be radiused.
• Seat shall be 5/16″ (8) thick solid phenolic with white color top and bottom surfaces and shall have black edges.
• Support arm shall fold up when in retracted position to provide low profile against wall.
• No extra fittings shall be required to retain seat in storage position.
• Guide bracket shall control seat lowering into operating position.
• Unit shall satisfy ADA Accessibility Guidelines when mounted properly.

Specifications:

• Seat Material:  Solid phenolic, ivory colored. Slotted for drainage.
• Frame Material: 304 Satin finish, stainless steel.
• Weight:  26.0 lbs.
• Load Capacity:  Rated up to 500 lbs when properly installed.
• Height Open:  17″ to 19″
• Height Closed:  35″ to 37″
